R 2,845.00
Incl Vat.

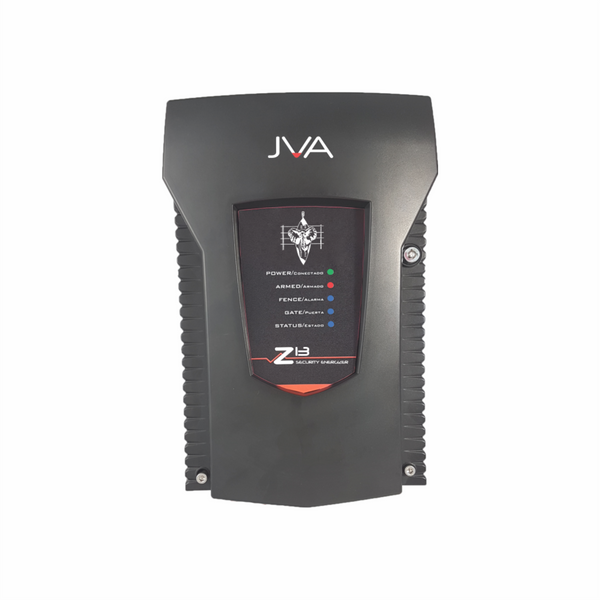

The JVA Z13 is a single zone security electric fence Energizer purpose built for control and monitoring of perimeter security electric fences. It can meet all of the requirements from basic residential to fully integrated high profile installations.

It can also be networked with other Z Range Energizers to form a pulse synchronized group for larger sites which require multiple zones. It is in a class of its own when it comes to features and benefits at an affordable price.

Features

  • High‐Voltage, Single‐Zone Fence Monitor triggers alarm when live wires are tampered with
  • Earth Wire Monitor triggers alarm when the earth wires are tampered with
  • Gate Monitor input to monitor the gate
  • Dynamic Voltage Monitoring minimizing arcing and false alarms while maximizing power and battery life
  • 3 Joules maximum output energy
  • Compliant with IEC60335‐2‐76
  • Built‐in Lightning and Surge Protection
  • Up to 24‐Hour Monitoring in the event of a power failure
  • High and low power options
  • Energizer supplied with secure Key Switch Operation
  • Diagnostic Mode
  • 2 Standard Fully Programmable Relays plus option for 3 more on request
  • Keypad Compatible – Use a Z‐Range Keypad
  • Programmable to Bi-polar or Standard
  • Pulse Synchronization in group mode
  • Anti-tamper option programmable on request
  • Internal Battery Backup in case of power failure

        Notes

        • 12V 7ah battery included.
        • 16V, 1,5 Amp Power supply included.

        Warranty

        3 year Manufacturer Warranty (excludes lightning damage)


        The JVA Z13 is a single zone security electric fence Energizer purpose built for control and monitoring of perimeter security electric fences. It can meet all of the requirements from basic residential to fully integrated high profile installations.

        It can also be networked with other Z Range Energizers to form a pulse synchronized group for larger sites which require multiple zones. It is in a class of its own when it comes to features and benefits at an affordable price.

        Features

        • High‐Voltage, Single‐Zone Fence Monitor triggers alarm when live wires are tampered with
        • Earth Wire Monitor triggers alarm when the earth wires are tampered with
        • Gate Monitor input to monitor the gate
        • Dynamic Voltage Monitoring minimizing arcing and false alarms while maximizing power and battery life
        • 3 Joules maximum output energy
        • Compliant with IEC60335‐2‐76
        • Built‐in Lightning and Surge Protection
        • Up to 24‐Hour Monitoring in the event of a power failure
        • High and low power options
        • Energizer supplied with secure Key Switch Operation
        • Diagnostic Mode
        • 2 Standard Fully Programmable Relays plus option for 3 more on request
        • Keypad Compatible – Use a Z‐Range Keypad
        • Programmable to Bi-polar or Standard
        • Pulse Synchronization in group mode
        • Anti-tamper option programmable on request
        • Internal Battery Backup in case of power failure

              Notes

              • 12V 7ah battery included.
              • 16V, 1,5 Amp Power supply included.

              Warranty

              3 year Manufacturer Warranty (excludes lightning damage)


              Sku: Z13B + AA-B7
